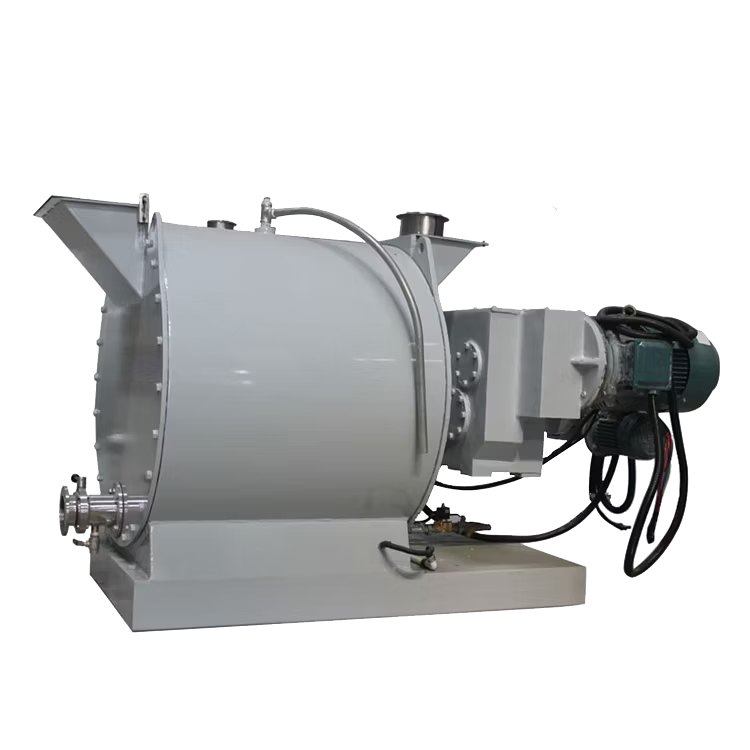

Linha de Refino ChocoMaster
Break free from the giants.
Pre-grinding, refining and conching in a single machine: the ChocoMaster line combines the refining conche with transfer pumps, stainless piping and a storage tank — 500 kg to 1-tonne batches of chocolate, pastes and creams, fully independent from big-brand supply.
500 kg or 1,000 kg batches, with refining and conching in the same tank
Industrial-standard fineness, with blades that round out the flavor
Universal: refines and conches in a single machine, no separate steps
Complete refining and conching with the conching profile under control
3 kW × 3 water heating and 220 V or 380 V three-phase power supply
Conching profile programmed and monitored directly on the panel
Transfer pump, stainless steel piping and storage tank included
What sets the Linha de Refino ChocoMaster apart
- 01
Universal: everything in one machine
From adding ingredients to finishing, the ChocoMaster handles pre-grinding, refining and conching in one simple-to-operate body — the most accessible way to master your own chocolate making.
- 02
Blades that refine and round the flavor
With specially designed blades, the ChocoMaster refines, mixes, reduces moisture and viscosity and improves the aromas of the mass — removing fermentation acetic acid through high shear and reaching 20–25 microns.
- 03
Integrated line: pumps, piping and tank
The transfer-pump discharge system, stainless piping and storage tank automate the chocolate outflow — from cocoa mass to finished product with no manual transport.
- 04
Conching profile under control
Circulation, oxygenation, moisture reduction, shearing and homogenization — unified in a touchscreen system so you design the perfect profile for each recipe.
The line, machine by machine
Each machine in the line has its own page with the full datasheet.
What this line produces
Your brand, at industrial scale.
Pre-grinding, refining and conching in 500 kg to 1-tonne batches — independence at industrial scale.
Features
- Batches from 500 kg to 1,000 kg
- Particle size of 20–25 microns
- Refining and conching in 14–20 h per batch
- Transfer pump + stainless piping + storage tank
- Touchscreen HMI control panel
- Cooling via chiller or external tower
- Auxiliary operating ladder included in the line design

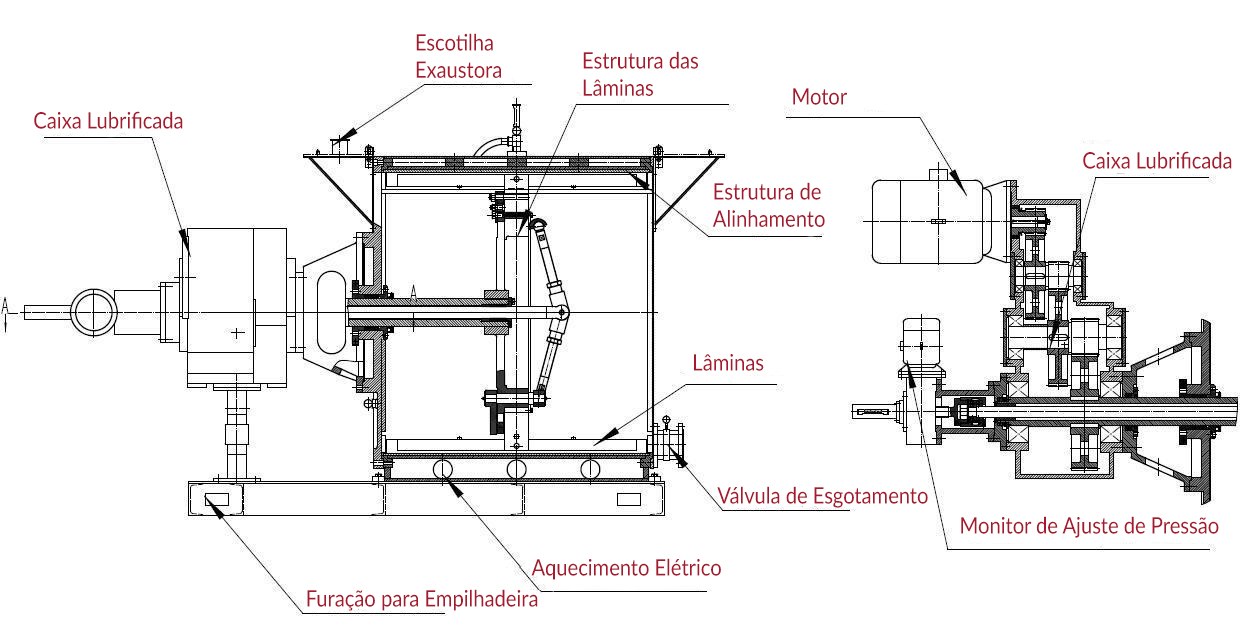

Dimensions & drawing
Technical drawing with measurements in millimeters.
Ready to start a project?
Tell us what you produce today and how far you want to go — we design the line to get you there.
